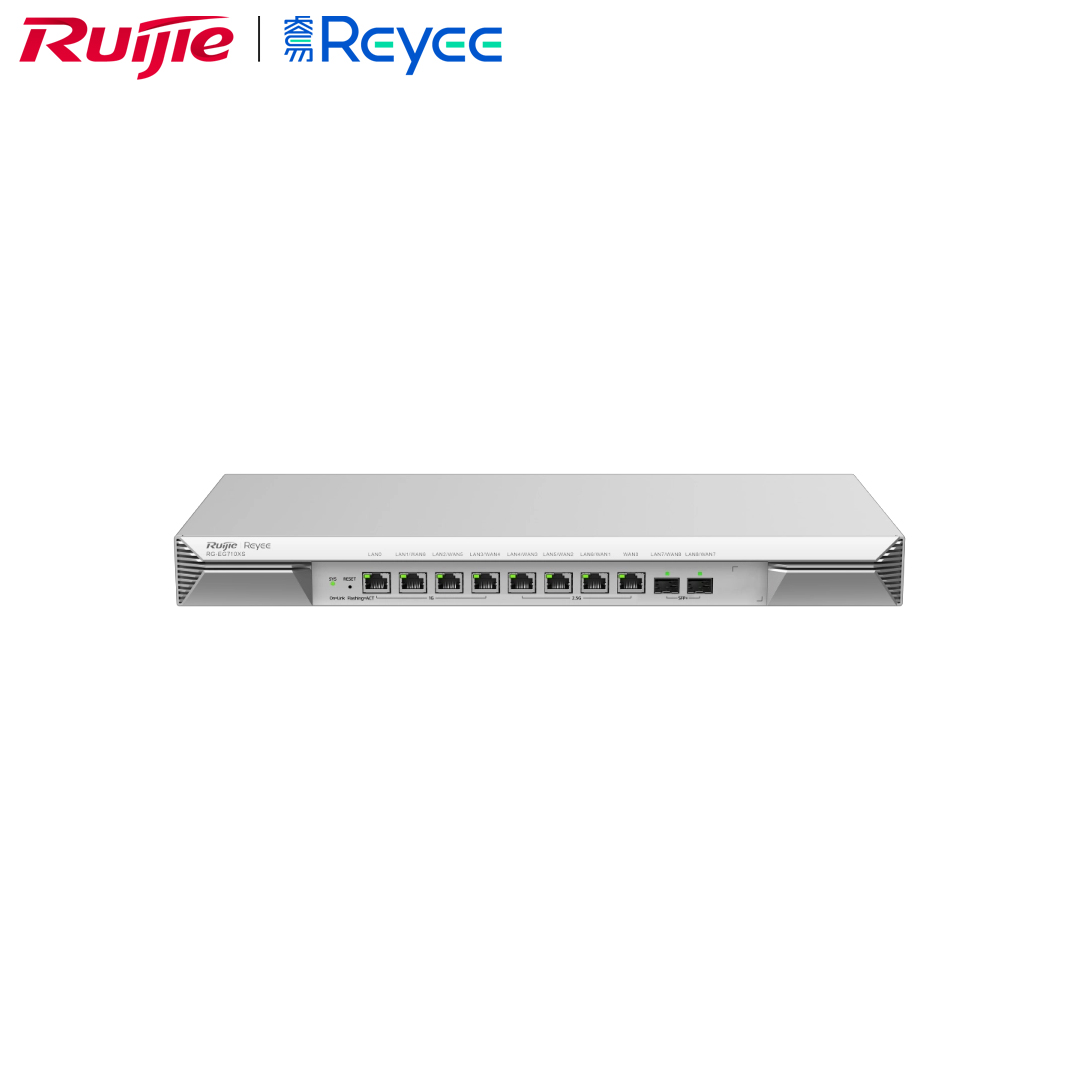

Balance router Ruijie Reyee RG-EG710XS 10port(Max 9Wan/9Lan) 10G/Gigabit

SKU: NET611

Stocking

INTRODUCE

The Ruijie Reyee RG-EG710XS is a 10-port high-performance cloud-managed router designed for business networks with up to 700 concurrent clients. It combines Gigabit, 2.5 Gigabit, and 10 Gigabit connectivity with multi-WAN load balancing, VPN connectivity, and throughput of up to 3Gbps in Normal Mode or 4Gbps in Turbo Mode.

7,790,000 Kip

Product Details

Brand: Ruijie Reyee
Model: RG-EG710XS

Features
Four Gigabit RJ45 ports, four 2.5 Gigabit RJ45 ports, and two 10 Gigabit SFP+ ports provide flexible wired connectivity.

Eight LAN/WAN-switchable ports, together with one fixed WAN and one fixed LAN port, support configurations with up to nine WAN ports.

Multi-WAN intelligent load balancing and policy-based routing support flexible internet traffic distribution.

Supports up to 300 VPN tunnels for branch offices and remote employees.

Application- and user-based bandwidth management helps control network resource allocation.

SD-WAN supports up to 300 branches, with rated throughput of 1100Mbps.

Lifetime Ruijie Cloud management provides remote network monitoring and administration.

A fanless, 1U rack-mount design provides silent operation and convenient installation in network cabinets.

Specification.
Product type: High-performance cloud-managed wired router.

Processor: Quad-core CPU, 1.8GHz per core.

RAM: 2GB.

Flash memory: 256MB.

eMMC storage: 8GB.

Total network ports: 10; 8 × RJ45 ports and 2 × SFP+ ports.

Gigabit Ethernet ports: 4 × 10/100/1000BASE-T; 1 fixed LAN port and 3 LAN/WAN-switchable ports.

2.5 Gigabit Ethernet ports: 4 × 10/100/1000/2500BASE-T; 1 fixed WAN port and 3 LAN/WAN-switchable ports.

Optical ports: 2 × 10GE SFP+ ports, supporting 10G/1G operation and LAN/WAN switching.

Fixed WAN ports: 1.

Fixed LAN ports: 1.

LAN/WAN-switchable ports: 8.

Maximum WAN ports: 9.

Maximum LAN ports: 9.

Recommended concurrent clients: 700.

Throughput: 3000Mbps in Normal Mode; 4000Mbps in Turbo Mode.

VPN tunnel capacity: 300 tunnels.

SD-WAN throughput: 1100Mbps.

Maximum SD-WAN branches: 300.

SD-WAN tunnel capacity: 1500 tunnels.

WAN management: Multi-WAN load balancing, active/standby failover, network detection, and policy-based routing.

Bandwidth management: Application- and user-based control.

Management platform: Ruijie Cloud.

Device management capacity in AC Mode: 800 devices.

LED indicators: 1 × system status LED and 10 × Ethernet port LEDs.

Control: 1 × Reset button.

Power supply: Fixed internal power supply.

Power input: 100–240V AC, 50–60Hz.

Maximum power consumption: 14W.

Cooling: Fanless.

Mounting: Rack-mounted, 1U.

Operating temperature: 0°C to 40°C.

Operating humidity: 10%–90% RH, non-condensing.

Surge protection: Service ports ±6kV common mode; power connector ±6kV common mode and ±6kV differential mode.

Dimensions: 440 × 210 × 43.6mm, W × D × H.

Weight: 2.65kg.

RoHS compliance: Supported.

Warranty: 12 months.
