PSU 1050W Cooler Master MWE Gold 1050 V2 / 80 PLUS Gold, Full-Modular

SKU: DTG955

Stocking

INTRODUCE

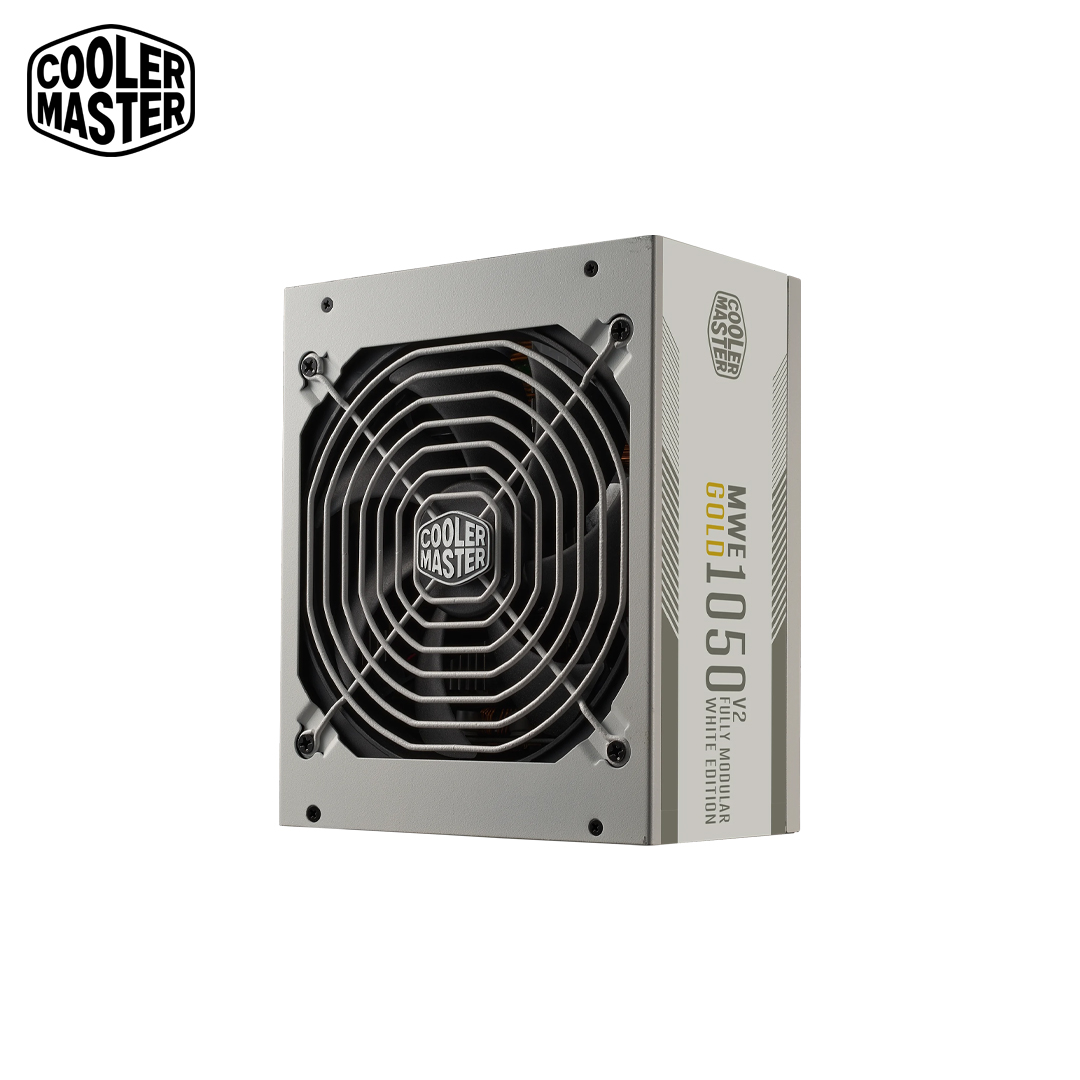

The Cooler Master MWE Gold 1050 V2 ATX 3.0 is a 1050W fully modular power supply with 80 PLUS Gold certification, reaching 90% efficiency at typical load. It meets the ATX 3.0 standard and has a native 12VHPWR connector. It can fully handle peak power from RTX 40 series graphics cards and the whole system. A quiet 140mm FDB fan and 2 EPS connectors make it a great fit for high-end gaming PCs.

2,550,000 Kip

Product Details

Brand: COOLER MASTER
Model: MWE Gold 1050 - V2 ATX 3.0 (MPE-A501-AFCAG-3)

Features
ATX 3.0 & 12VHPWR: A compact 12+4-pin cable sends up to 600W to the GPU through a single cable
80 PLUS Gold Efficiency: 90% efficiency at typical load
140mm FDB Fan: An advanced fluid-dynamic bearing fan gives quiet, effective cooling and a long lifespan
High Temperature Resilience: Runs safely at up to 50°C ambient for high-end and overclocked computers
Fully Modular Cabling: Easy cable management and better airflow
Dual EPS Connectors: 2 EPS connectors for high-end motherboards
Comprehensive Protections: OVP, OPP, SCP, OCP, UVP, OTP and inrush protection

Specification
Item Code: MPE-A501-AFCAG-3
ATX Version: ATX Rev. 3.0
Wattage: 1050W
PFC: Active PFC
Input Voltage: 100-240V
Input Current: 13-6A
Input Frequency: 50-60Hz
DC Output: +3.3V 20A, +5V 20A
Dimensions (L × W × H): 180 × 150 × 86 mm
Fan Size: 140mm
Fan Bearing: FDB
Efficiency: ≥ 90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Operating Temperature: 0-50°C
Power Good Signal: 100-150 ms
Hold Up Time: ≥ 16ms at 100% Load
MTBF: >100,000 hours
Protections: OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection
Regulatory: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
Connectors: 1 × ATX 24-pin (650mm); 1 × EPS 4+4-pin (650mm); 1 × EPS 8-pin (650mm); 12 × SATA = 3 × (500+120+120+120mm); 4 × Peripheral 4-pin = 1 × (500+120+120+120mm); 3 × PCI-e 6+2-pin = 3 × (550mm); 1 × 12VHPWR (650mm)
Modular: Fully Modular
Form Factor: ATX

Warranty: 12 months.
