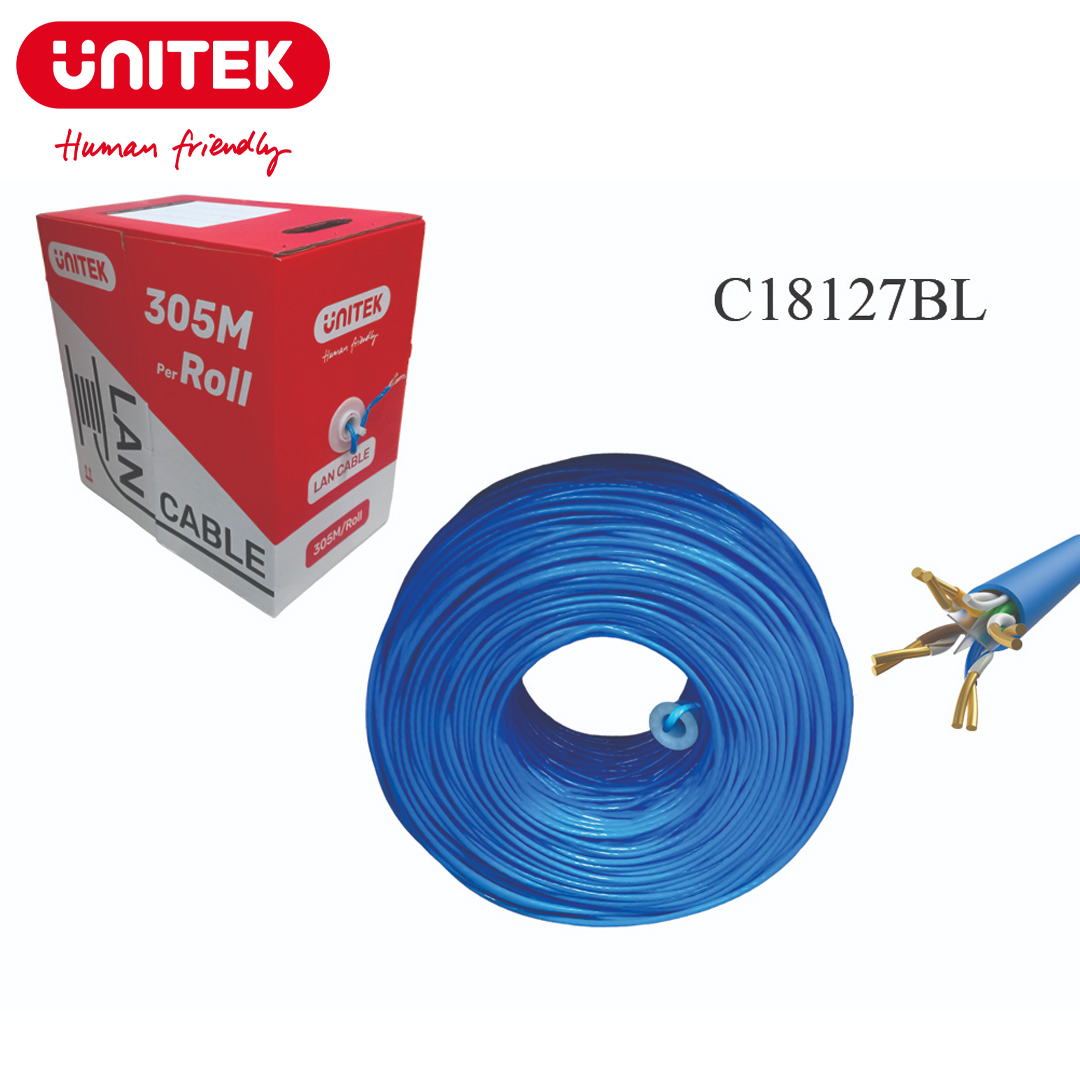

Cable LAN UTP Cat6 UNITEK C18127BL (BOX-305M)

SKU: UNT946

Stocking

INTRODUCE

UNITEK C18127BL is a 305‑meter Cat6 UTP LAN cable designed for reliable high‑speed Ethernet connectivity in structured cabling for homes, offices, and commercial projects. With 23AWG conductors and Cat6 performance up to 1Gbps at 250MHz, it is ideal for backbone links, horizontal runs, and custom‑length patch cables in modern networks.

1,245,000 Kip

Product Details

Brand: Unitek
Model: C18127BL (BOX‑305M)

Features
Cat6 UTP (Unshielded Twisted Pair) construction provides stable Gigabit Ethernet transmission while minimizing crosstalk and signal loss over long runs.
23AWG conductors with approximately 0.55 mm diameter deliver low attenuation and consistent performance for demanding applications such as IP cameras, VoIP, and HD video streaming.
CCA (Copper‑Clad Aluminum) conductor design offers a cost‑effective solution for large installations while maintaining compatibility with standard RJ45 networking hardware.
Durable PVC outer jacket and robust box‑reel packaging help protect the cable during transport and installation, making it suitable for professional project deployment.
305‑meter continuous length allows installers to cut precise runs for wall outlets, patch panels, and network devices without needing multiple shorter reels.
Traditional blue colour makes cable routes easy to identify and organize within racks, conduits, and cable trays.

Specification.
Cable type: UTP (Unshielded Twisted Pair) LAN cable.
Category: Cat6.
Conductor material: Copper‑Clad Aluminum (CCA).
Conductor gauge: 23AWG, approximate conductor diameter 0.55 mm (0.5±0.02 mm typical for UNITEK Cat6).
Length: 305 meters (1000 feet) per box.
Outer diameter: Approx. 6.0 mm.
Colour: Blue.
Insulation resistance: ≥5000 MΩ·km.
Propagation delay: ≤536.6 ns per 100 m.
Minimum bend radius: 4 times the cable outer diameter.
Operating temperature range: −20°C to +60°C.
Jacket material: PVC outer jacket, box‑reel packaging.
Supported bandwidth: Up to 250MHz (Cat6).
Data rate: Up to 1000Mbps / 1Gbps Ethernet.
Recommended applications: LAN networks, structured cabling, IP cameras, VoIP phones, data transmission systems, and general Ethernet installations.

Warranty: 1 month.
