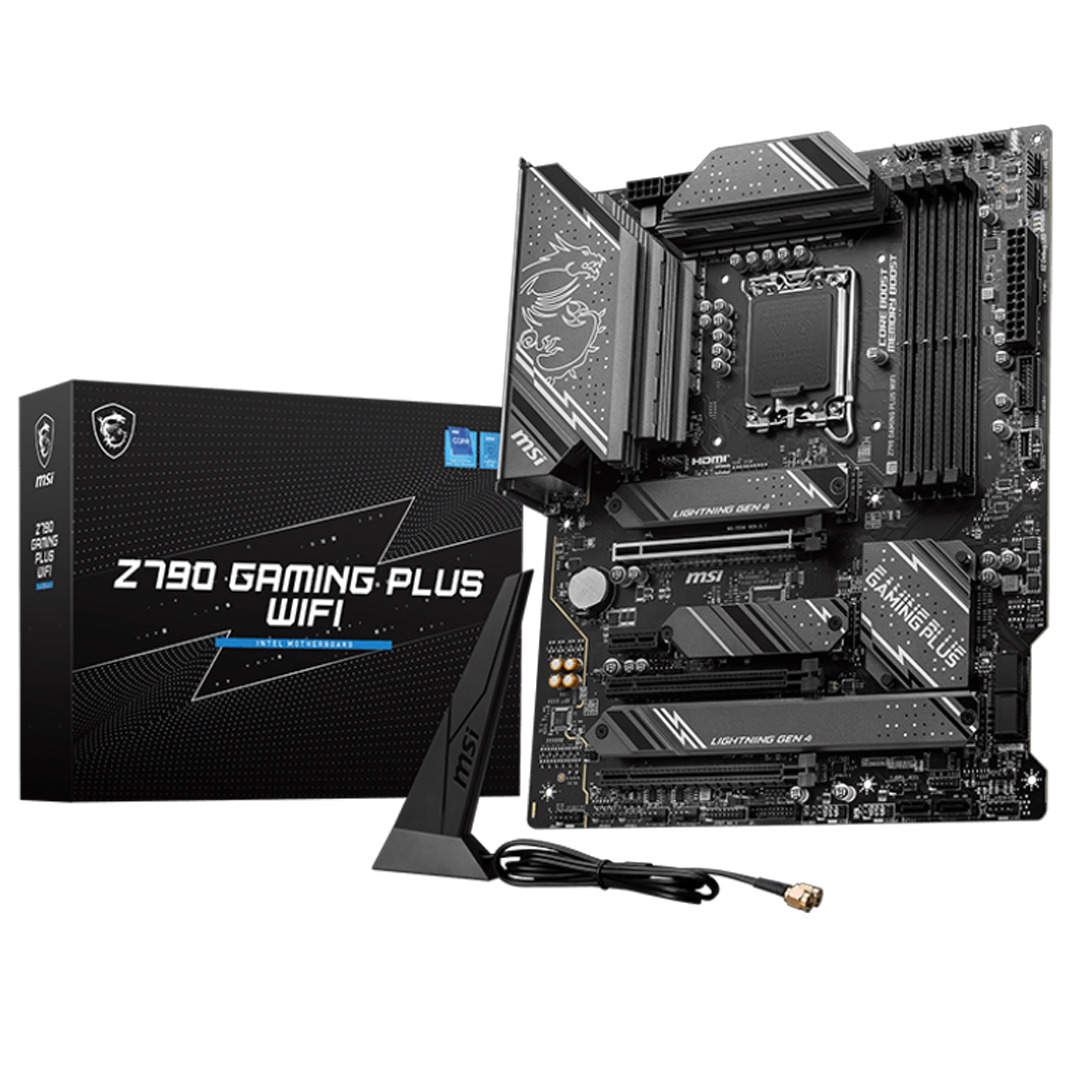

Mainboard MSI Z790 GAMING PLUS WIFI DDR5 LGA1700

SKU: DTB355

Stocking

INTRODUCE

The MSI Z790 GAMING PLUS WIFI is an ATX gaming motherboard with the Intel Z790 chipset for 14th, 13th and 12th Gen Intel Core processors on Socket LGA1700. It has DDR5 memory up to 7200+ MHz (OC), a PCIe 5.0 slot, 4 Lightning Gen 4 M.2 slots with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G, Intel Wi-Fi 6E and 2.5G LAN. It's packed with connections for gamers who want it all.

5,380,000 Kip

Product Details

Brand: MSI
Model: Z790 GAMING PLUS WIFI

Features
Enhanced Power Design: 14-phase power for high-performance gaming builds
Premium Thermal Solution: MSI's extended PWM heatsink and improved circuit design let even high-end processors run at full speed
DDR5 Memory: 4 DDR5 slots up to 7200+ MHz (OC), max 192 GB
Lightning Fast Game Experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G
Quad M.2 Storage: 4 M.2 Gen 4 x4 64 Gbps slots, plus an M.2 thermal solution that keeps SSDs from slowing down when hot
Intel Wi-Fi 6E: Supports the 6 GHz band, MU-MIMO and BSS color, with speeds up to 2400 Mbps
2.5G LAN: Premium 2.5G LAN for a better network experience
Flash BIOS Button: Update the BIOS without a CPU, memory or graphics card

Specification
CPU Support: Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T)
CPU Socket: LGA1700
Chipset: Intel Z790
Memory: 4 × DDR5 DIMM, max 192 GB
Memory Speed: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Expansion Slots: 4 × PCIe slots, including 1 × PCIe 5.0 x16
Display Interface: 1 × HDMI 2.1, 1 × DisplayPort; requires processor graphics
Storage: 4 × M.2 Gen 4 x4 64 Gbps slots, 6 × SATA 6 Gbps ports
USB: 1 × USB 3.2 Gen 2x2 20 Gbps (Type-C), 2 × USB 3.2 Gen 2 10 Gbps (Type-C + Type-A), 6 × USB 3.2 Gen 1 5 Gbps (Type-A), 8 × USB 2.0
Rear USB: 4 × USB 2.0, 2 × USB 5 Gbps Type-A, 1 × USB 10 Gbps Type-A, 1 × USB 20 Gbps Type-C
Front USB: 4 × USB 2.0, 4 × USB 5 Gbps Type-A, 1 × USB 10 Gbps Type-C
LAN: 2.5G LAN
Wireless/Bluetooth: Intel Wi-Fi 6E (module pre-installed in M.2 Key-E slot), MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4 Gbps, 802.11 a/b/g/n/ac/ax; Bluetooth 5.3
Audio: 8-Channel HD Audio
Rear I/O: Keyboard/Mouse, DisplayPort, HDMI 2.1, USB 2.0, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, Audio Connectors, Flash BIOS Button
Form Factor: ATX

Warranty: 12 months.
