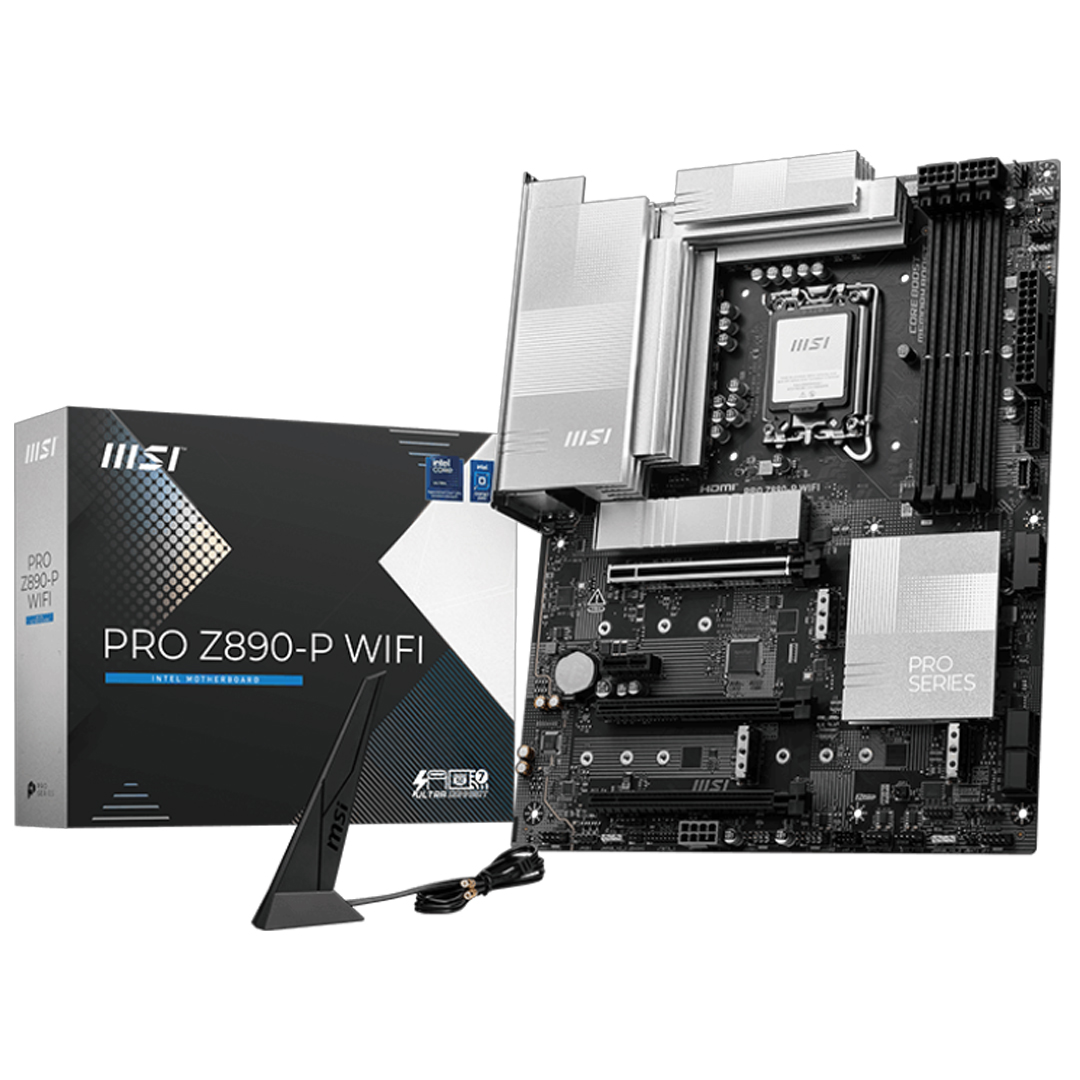

Mainboard MSI PRO Z890-P WIFI DDR5 LGA1851

SKU: DTB351

Stocking

INTRODUCE

The MSI PRO Z890-P WIFI is an ATX motherboard with the Intel Z890 chipset and a simple silver design, built for Intel Core Ultra Processors (Series 2) on Socket LGA1851. It has a flagship 14+1+1+1 digital power phase design with 55A DrMOS and DDR5 up to 9200 MT/s (OC). You also get PCIe 5.0, M.2 Gen5 with EZ M.2 Shield Frozr II, Thunderbolt 4, 5G LAN, full-speed Wi-Fi 7 with EZ Antenna, and supplemental PCIe power.

5,920,000 Kip

Product Details

Brand: MSI
Model: PRO Z890-P WIFI

Features
Ultra Power: 14+1+1+1 Duet Rail Power System with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost and Memory Boost, on a 6-layer PCB with 2oz thickened copper and server-grade material
DDR5 Memory Boost: 4 DDR5 UDIMM slots up to 256 GB and 9200 MT/s (OC), with a dedicated SMT welding process
Lightning Fast Experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Quad M.2 Storage: 1 M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II, plus 3 M.2 Gen4 x4 64Gbps slots
Thunderbolt 4: A rear Type-C port up to 40Gbps, with 8K display support and 15W charging
5G LAN & Wi-Fi 7: Realtek 8126 5G LAN plus Wi-Fi 7 on 320MHz channels up to 5.8Gbps, 2.4 times faster than Wi-Fi 6/6E
Supplemental PCIe Power: Extra power to the PCIe slot for high-end graphics cards
Audio Boost 4: 7.1-channel high-performance audio

Specification
CPU Support: Intel Core Ultra Processors (Series 2)
CPU Socket: LGA1851
Chipset: Intel Z890
Power Design: 14 Duet Rail Power System (55A DrMOS), 1-Phase SA Power, 1-Phase GT Power, 1-Phase VNNAON Power
Memory: 4 × DDR5 UDIMM, max 256 GB; 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; dual channel
Expansion Slots: 3 × PCI-E x16 slots, 1 × PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 PCIe 4.0 supports up to x4 (From Chipset)
Display Interface: 1 × HDMI (HDMI 2.1, max 4K 60Hz); 1 × DisplayPort (DP 1.4, max 4K 60Hz); 1 × Type-C DisplayPort (Thunderbolt 4 port, DP 1.4 over USB Type-C, max 4K 120Hz / 8K 60Hz); requires processor graphics
Storage: 4 × M.2; M.2_1 (From CPU) supports up to PCIe 5.0 x4, 2280/2260; M.2_2 (From CPU) supports up to PCIe 4.0 x4, 22110/2280/2260; M.2_3 (From Chipset) supports up to PCIe 4.0 x4, 2280/2260/2242; M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, 2280/2260/2242; 4 × SATA 6G
Onboard Thunderbolt: 1 × Thunderbolt 4 port (Rear); up to 40Gbps with Thunderbolt devices, up to 20Gbps with USB4 devices, up to 10Gbps with USB 3.2 devices; supports up to 5V/3A, 15W power charging; each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; supports up to 8K display
USB: 1 × USB 3.2 Gen2x2 Type-C (20Gbps), 1 × USB 3.2 Gen2 Type-C (10Gbps), 1 × USB 3.2 Gen2 Type-A (10Gbps), 6 × USB 3.2 Gen1 Type-A (5Gbps), 8 × USB 2.0
LAN: Realtek 8126 5Gbps LAN
Wireless & Bluetooth: Intel Wi-Fi 7 (module pre-installed in M.2 Key-E slot), 320MHz channel up to 5.8Gbps; Bluetooth 5.4
Audio: 7.1-Channel High Performance Audio with Audio Boost 4
Form Factor: ATX

Warranty: 12 months.
