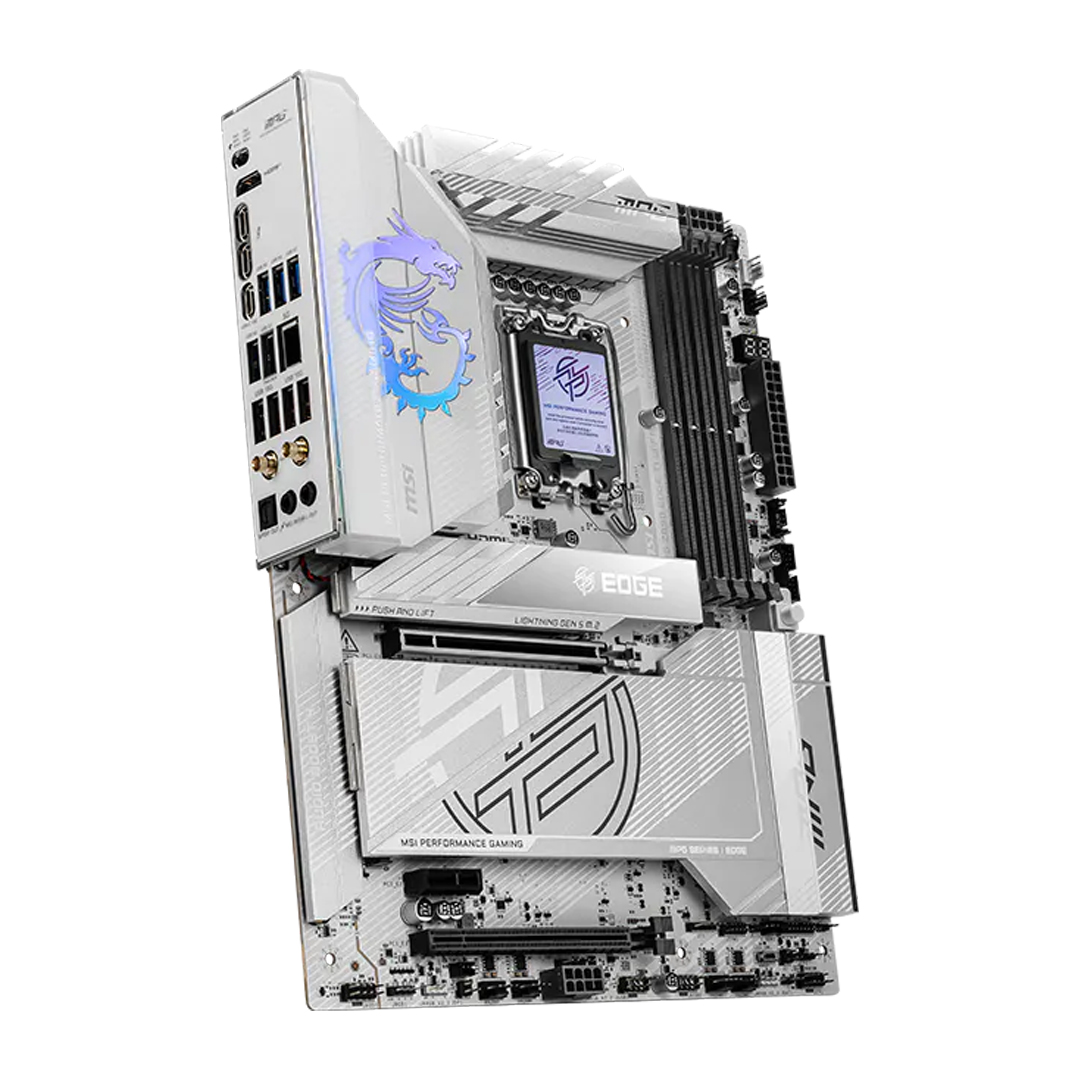

Mainboard MSI MPG Z890 EDGE TI WIFI DDR5 LGA1851

SKU: DTB381

Stocking

INTRODUCE

The MSI MPG Z890 EDGE TI WIFI is a white ATX gaming motherboard with the Intel Z890 chipset for Intel Core Ultra Processors (Series 2) on Socket LGA1851. It has a 16 Duet Rail Power System with 90A SPS and DDR5 up to 9066+ MT/s (OC). PCIe 5.0, a Lightning Gen5 M.2 slot, 2 Thunderbolt 4 ports, Intel Killer 5G LAN and Intel Killer Wi-Fi 7 are all built in. EZ DIY features make it easy to build an AI PC.

7,170,000 Kip

Product Details

Brand: MSI
Model: MPG Z890 EDGE TI WIFI

Features
16 Duet Rail Power System: 90A SPS VRM for steady power to Intel Core Ultra processors
DDR5 Memory Boost: 4 dual-channel DDR5 slots up to 9066+ MT/s (OC)
Lightning Fast Game Experience: PCIe 5.0 slot and Lightning Gen 5 M.2
Five M.2 Slots: 1 Gen5 x4 128Gbps slot with double-sided M.2 Shield Frozr, plus 4 Gen4 x4 64Gbps slots with M.2 Shield Frozr
Thunderbolt 4: 2 USB Type-C ports up to 40Gbps with 8K@60Hz display support, daisy-chaining, multi-port accessory architecture and USB 4.0 compliance
Intel Killer 5G LAN: An Intel Killer E5000B 5G LAN controller for a premium gaming network experience
Wi-Fi 7 & Bluetooth 5.4: Full-speed Intel Killer BE1750x Wi-Fi 7 with 320MHz channels and up to 5.8Gbps, 2.4 times faster than Wi-Fi 6/6E
Front USB Type-C with 27W PD: Fast charging from the front panel
Audio Boost 4: Premium HD audio

Specification
CPU Support: Intel Core Ultra Processors (Series 2)
CPU Socket: LGA1851
Chipset: Intel Z890
Memory: 4 × DDR5 DIMMs, dual channel, up to 9066+ MT/s (OC)
Expansion Slots: 1 × PCIe 5.0 x16 slot, 1 × PCIe 4.0 x16 slot, 1 × PCIe 4.0 x1 slot
Display Interface: 2 × Thunderbolt 4 (Type-C), supports 8K@60Hz as specified in HDMI 2.1 FRL; requires processor graphics
Storage: 5 × M.2; M.2_1 (from CPU) supports up to PCIe 5.0 x4, 2280/2260; M.2_2 (from CPU) supports up to PCIe 4.0 x4, 2280/2260; M.2_3 (from Chipset) supports up to PCIe 4.0 x4, 2280/2260; M.2_4 (from Chipset) supports up to PCIe 4.0 x4, 22110/2280; M.2_5 (from Chipset) supports up to PCIe 4.0 x4 / SATA mode, 22110/2280/2260; 4 × SATA 6G
Thunderbolt 4: 2 × Thunderbolt 4 ports (Rear); up to 40Gbps with Thunderbolt devices, up to 20Gbps with USB4 devices, up to 10Gbps with USB 3.2 devices; supports up to 5V/3A, 15W power charging; each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; supports up to 8K display
LAN: 1 × Intel Killer E5000B 5G LAN
Wireless & Bluetooth: Intel Killer BE1750x Wi-Fi 7 (module pre-installed in M.2 Key-E slot), MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be; Bluetooth 5.4
Front USB: USB Type-C with 27W PD
Form Factor: ATX
Colour: White

Warranty: 12 months.
