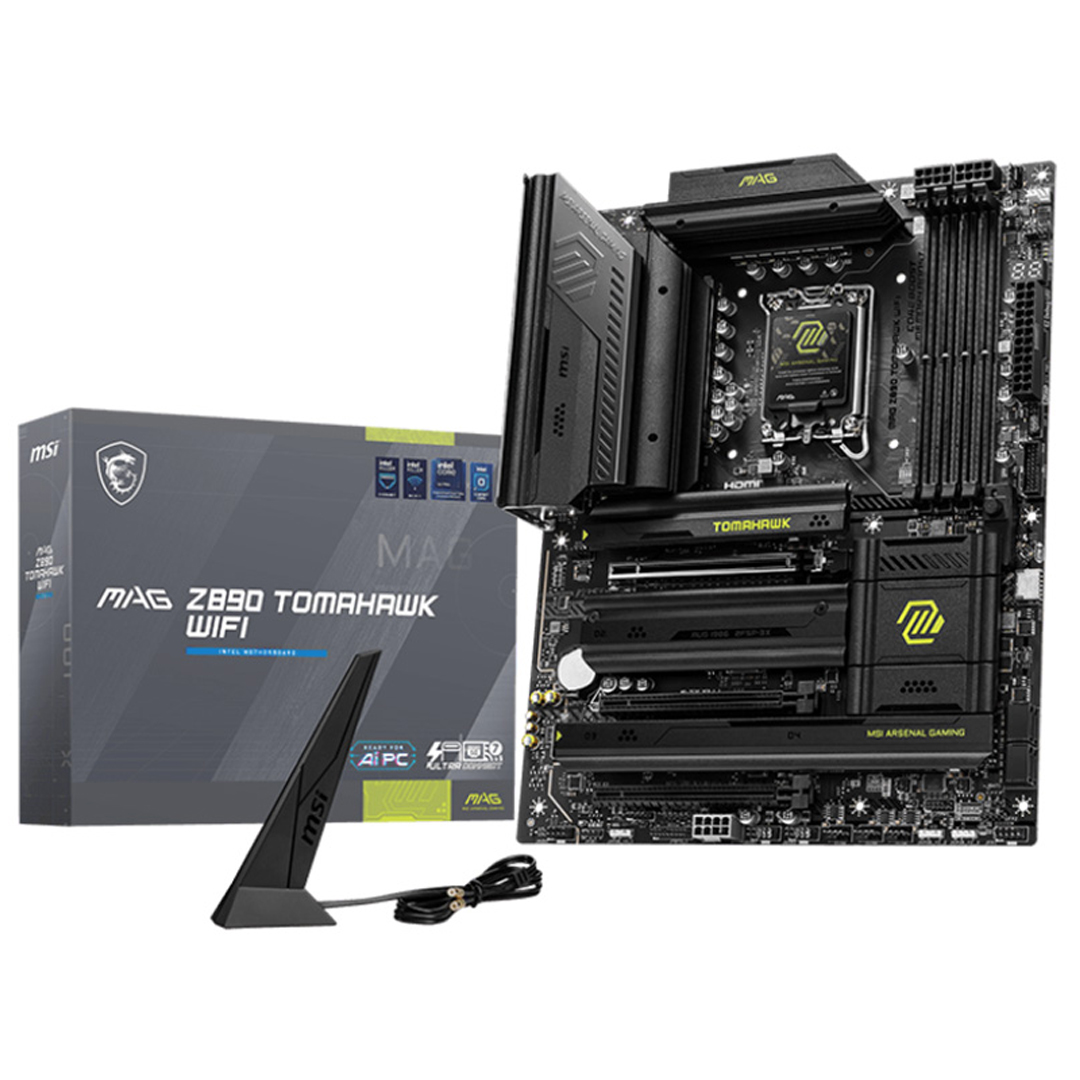

Mainboard MSI MAG Z890 TOMAHAWK WIFI DDR5 LGA1851

SKU: DTB367

Stocking

INTRODUCE

The MSI MAG Z890 TOMAHAWK WIFI is an ATX gaming motherboard with the Intel Z890 chipset for Intel Core Ultra Processors (Series 2) on Socket LGA1851. It has 90A SPS power stages and DDR5 support up to 9200 MT/s (OC) and 256 GB. A PCIe 5.0 x16 slot, M.2 Gen5, 2 Thunderbolt 4 ports, Intel Killer 5G LAN and Wi-Fi 7 are all built in. EZ DIY features make it ideal for AI PCs and gaming builds.

7,170,000 Kip

Product Details

Brand: MSI
Model: MAG Z890 TOMAHAWK WIFI

Features
Powerful VRM: 16+1+1+1 phase power design with 90A SPS for Vcore
DDR5 Memory Boost: 4 DDR5 UDIMM slots up to 256 GB and 9200 MT/s (OC)
PCIe 5.0 Ready: A PCIe 5.0 x16 slot with up to 128GB/s bandwidth for the fastest transfer speeds
Quad M.2 Storage: 1 M.2 Gen5 x4 128Gbps slot plus 3 M.2 Gen4 x4 64Gbps Lightning slots
Thunderbolt 4: 2 USB Type-C ports up to 40Gbps with 8K display support, daisy-chaining and USB 4.0 compliance
Intel Killer 5G LAN & Wi-Fi 7: Intel Killer E5000B 5G LAN plus Killer Wi-Fi 7 BE1750x, with 320MHz channels and up to 5.8Gbps
Front USB 20G Type-C with 27W PD: Fast charging and data from the front panel
EZ DIY Design: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna and EZ PCIe Release make building easier
Audio Boost 4: 8-channel (7.1) HD Audio

Specification
CPU Support: Intel Core Ultra Processors (Series 2)
CPU Socket: LGA1851
Chipset: Intel Z890
Memory: 4 × DDR5 UDIMM, max 256 GB; memory support 9200 - 6400 (OC) MT/s; dual channel
Expansion Slots: 3 × PCIe x16 slots; PCI_E1 PCIe 5.0 supports up to x16 (from CPU); PCI_E2 PCIe 4.0 supports up to x4 (from Chipset); PCI_E3 PCIe 4.0 supports up to x4 (from Chipset)
Display Interface: 2 × Thunderbolt 4 (Type-C), supports 8K@60Hz; 1 × HDMI 2.1 (4K/120Hz); requires processor graphics
Storage: 4 × M.2; M.2_1 (from CPU) supports up to PCIe 5.0 x4, 2280/2260; M.2_2 (from CPU) supports up to PCIe 4.0 x4, 22110/2280/2260; M.2_3 (from Chipset) supports up to PCIe 4.0 x4, 2280/2260/2242; M.2_4 (from Chipset) supports up to PCIe 4.0 x4 / SATA mode, 2280/2260/2242; 4 × SATA 6G
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA and M.2 NVMe storage devices
Thunderbolt 4: 2 × Thunderbolt 4 ports (Rear); up to 40Gbps with Thunderbolt devices, up to 20Gbps with USB4 devices, up to 10Gbps with USB 3.2 devices; supports up to 5V/3A, 15W power charging; each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; supports up to 8K display
USB: 1 × USB 20Gbps (Type-C, front), 4 × USB 10Gbps (3 Type-A + 1 Type-C), 6 × USB 5Gbps (Type-A), 4 × USB 2.0
LAN: Intel Killer E5000B 5G LAN
Wireless & Bluetooth: Intel Killer Wi-Fi 7 BE1750x, Bluetooth 5.4
Audio: Realtek ALC1220P Codec, 8-Channel (7.1) HD Audio with Audio Boost 4
Rear Ports: USB BIOS Flashback button, Clear CMOS button, 1 × 5Gbps Ethernet, 1 × HDMI, 2 × Thunderbolt 4 40Gbps (Type-C), 2 × Wi-Fi antenna connectors, audio jacks, 1 × Optical S/PDIF Out
BIOS: 256 Mbit AMI UEFI
Fan Headers: 8 × 4-pin
Form Factor: ATX, 30.5 cm × 24.4 cm (12 × 9.6 in)

Warranty: 12 months.
