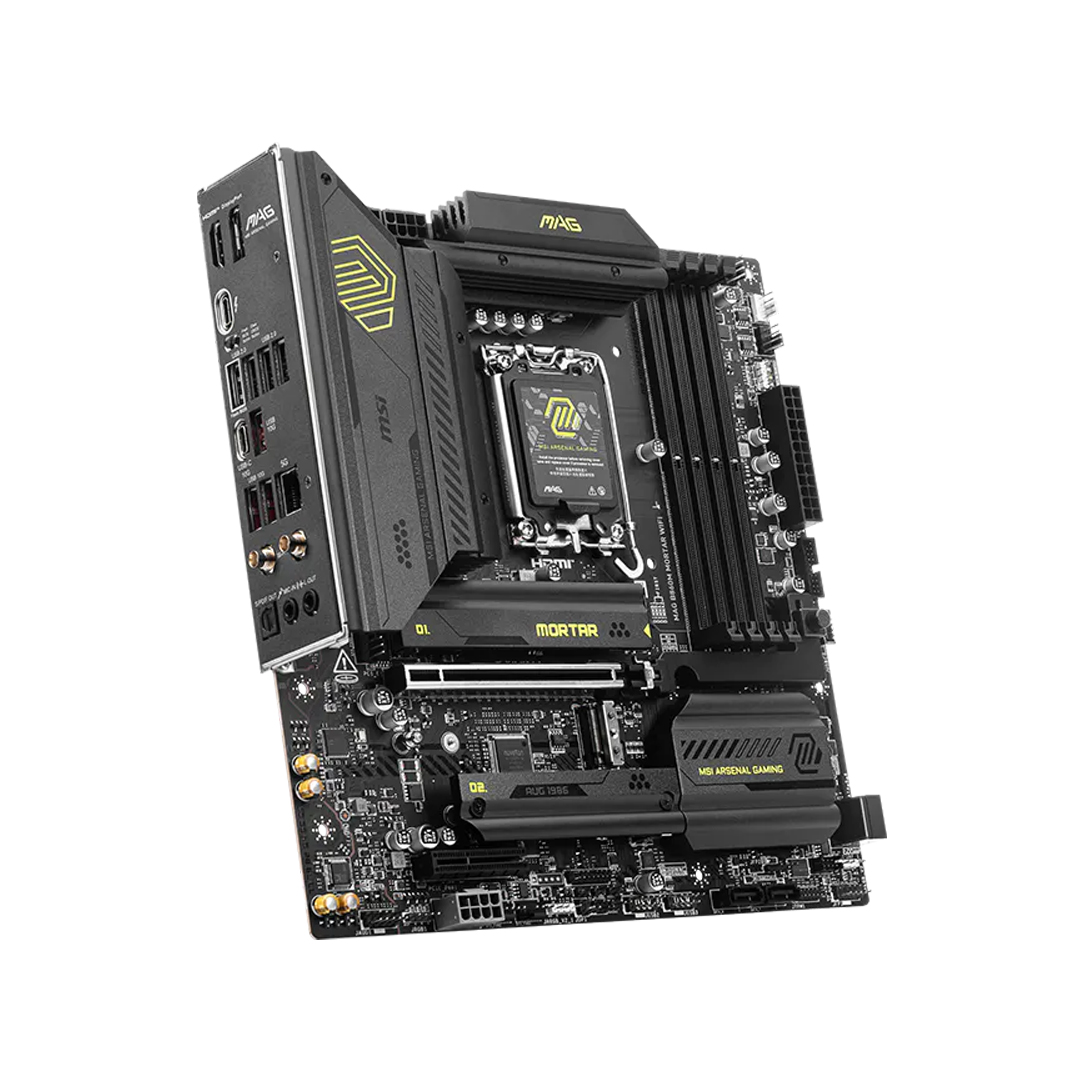

Mainboard MSI MAG B860M MORTAR WIFI DDR5 LGA1851

SKU: DTB379

Stocking

INTRODUCE

The MSI MAG B860M MORTAR WIFI is a gaming mATX motherboard with the Intel B860 chipset for Intel Core Ultra Processors (Series 2) on Socket LGA1851. It has a 12+1+1+1 Duet Rail Power System with 60A DrMOS and dual-channel DDR5 up to 9200+ MT/s (OC). PCIe 5.0, a Lightning Gen5 M.2 slot, Thunderbolt 4, Intel Killer 5G LAN and Killer Wi-Fi 7 are all built in. It balances value with premium hardware for gamers.

4,940,000 Kip

Product Details

Brand: MSI
Model: MAG B860M MORTAR WIFI

Features
Ultra Performance: 12+1+1+1 Duet Rail Power System with 60A DrMOS, dual 8-pin CPU power connectors, Core Boost and Memory Boost, on a 6-layer PCB with 2oz thickened copper and server-grade material
DDR5 Memory Boost: Dual-channel DDR5 up to 9200+ MT/s (OC)
Lightning Fast Game Experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Triple M.2 Storage: 1 M.2 Gen5 x4 128Gbps slot and 2 M.2 Gen4 x4 64Gbps slots (one with M.2 Shield Frozr)
Thunderbolt 4: A 40Gbps USB Type-C port with up to 5V/3A, 15W charging
Ultra Connect: Intel Killer 5G LAN and Intel Killer Wi-Fi 7 for secure, stable, high-speed networking
Supplemental PCIe Power and EZ DIY: Extra power for the PCIe slot, plus MSI-exclusive EZ DIY features
Bluetooth 5.4: Fast wireless connections

Specification
CPU Support: Intel Core Ultra Processors (Series 2)
CPU Socket: LGA1851
Chipset: Intel B860
Power Design: 12 Duet Rail Power System with 60A DrMOS, 1-Phase SA Power, 1-Phase GT Power, 1-Phase VNNAON Power
Memory: 4 × DDR5 DIMM, dual channel, up to 256 GB; up to 9200+ MT/s (OC); 1DPC 1R/2R up to 5600 MT/s, 2DPC 1R up to 4800 MT/s, 2DPC 2R up to 4400 MT/s (JEDEC)
Expansion Slots: 1 × PCIe 5.0 x16 slot, 1 × PCIe 4.0 x4 slot
Storage: 3 × M.2; M.2_1 (From CPU) supports up to PCIe 5.0 x4, 2280/2260/2242; M.2_2 (From Chipset) supports up to PCIe 4.0 x4, 2280/2260; M.2_3 (From Chipset) supports up to PCIe 4.0 x4, 2280/2260; 4 × SATA 6G
USB: 1 × USB Type-C up to 40Gbps (Thunderbolt 4), charging support up to 5V/3A, 15W; 5 × USB 10Gbps (3 Type-A + 2 Type-C); 2 × USB 5Gbps (2 Type-A); 8 × USB 2.0
USB Detail: 4 × USB 2.0 (Rear), 4 × USB 2.0 (Front), 2 × USB 5Gbps Type A (Front), 3 × USB 10Gbps Type A (Rear), 1 × USB 10Gbps Type C (Rear), 1 × USB 10Gbps Type C (Front)
LAN: Intel Killer E5000B 5G LAN
Wireless & Bluetooth: Intel Killer Wi-Fi 7 (module pre-installed in M.2 Key-E slot), MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz; Bluetooth 5.4
Audio: Realtek ALC897, supports S/PDIF output
Form Factor: Micro-ATX

Warranty: 12 months.
