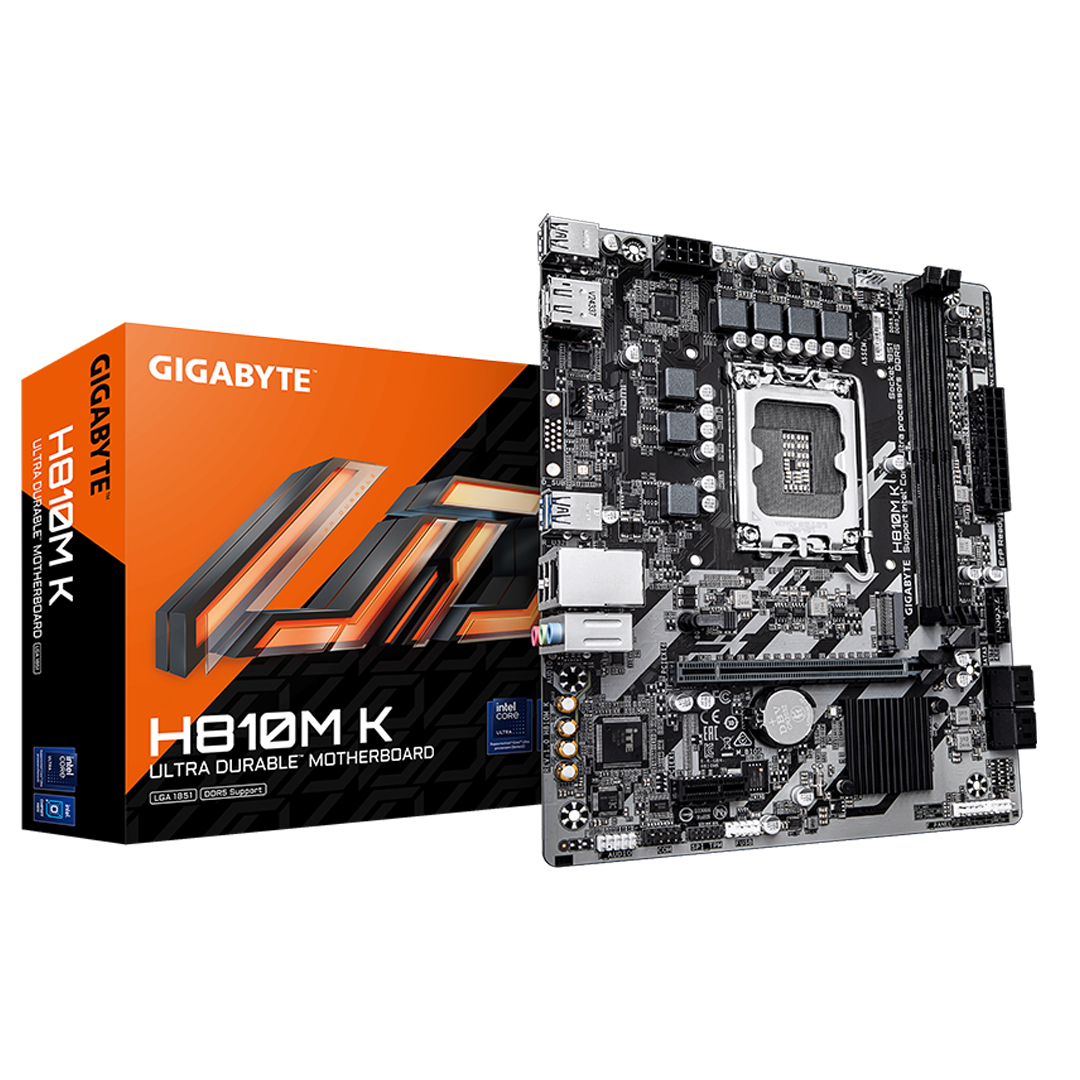

Mainboard GIGABYTE H810M K DDR5 LGA1851

SKU: DTB369

Stocking

INTRODUCE

The GIGABYTE H810M K is a Micro-ATX motherboard with the Intel H810 Express chipset for Intel Core Ultra Processors (Series 2) on Socket LGA1851. It has a hybrid 3+1+2 phase VRM, 2 dual-channel DDR5 slots up to 6400 MT/s and 128 GB, a PCIe 4.0 x16 slot with EZ-Latch, and a PCIe 4.0 x4 M.2 slot. HDMI 2.1, DisplayPort 2.1 and GbE LAN are built in.

1,890,000 Kip

Product Details

Brand: GIGABYTE
Model: H810M K

Features
Hybrid 3+1+2 Phase VRM: Steady power for Intel Core Ultra (Series 2) processors
UD Power Connector: A 24-pin ATX connector and an 8-pin CPU connector with UD Solid Pin
Dual Channel DDR5: 2 DDR5 DIMM slots up to 6400 MT/s and 128 GB, with XMP support
EZ-Latch: A PCIe x16 slot with a quick-release design
Next Generation Storage: A PCIe 4.0 x4 M.2 connector
Fast Networking: GbE LAN with bandwidth management software for lower latency
Extended Connectivity: HDMI and DisplayPort
Friendly UI: Multi-Theme and Q-Flash Auto Scan in the BIOS and software

Specification
CPU: LGA1851 socket, support for Intel Core Ultra Processors; L3 cache varies with CPU
Chipset: Intel H810 Express Chipset
Memory: Support for DDR5 6400/5600 MT/s memory modules; 2 × DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity); dual channel memory architecture; support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; support for Extreme Memory Profile (XMP)
Onboard Graphics: Integrated Graphics Processor, Intel HD Graphics support; 1 × DisplayPort, max resolution 4096x2304@60 Hz (DisplayPort 2.1, HDCP 2.3); 1 × HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3)
LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots: CPU: 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16; supports a graphics card or an NVMe SSD only); Chipset: 1 × PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface: Chipset: 1 × M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support); 4 × SATA 6Gb/s connectors
USB: Chipset: 4 × USB 3.2 Gen 1 ports (2 on the back panel, 2 via the internal USB header); 6 × USB 2.0/1.1 ports (4 on the back panel, 2 via the internal USB header)
Internal I/O Connectors: 1 × 24-pin ATX main power connector, 1 × 8-pin ATX 12V power connector, 1 × CPU fan header, 1 × system fan header, 1 × M.2 Socket 3 connector, 4 × SATA 6Gb/s connectors, 1 × front panel header, 1 × front panel audio header, 1 × USB 3.2 Gen 1 header, 1 × USB 2.0/1.1 header, 1 × Trusted Platform Module header (for the GC-TPM2.0 SPI V2 module only), 1 × serial port header, 1 × Clear CMOS jumper
Back Panel Connectors: 1 × DisplayPort, 1 × HDMI port, 2 × USB 3.2 Gen 1 ports, 4 × USB 2.0/1.1 ports, 1 × RJ-45 port, 3 × audio jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control
BIOS: 1 × 256 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 22.6 cm × 18.5 cm

Warranty: 12 months.
