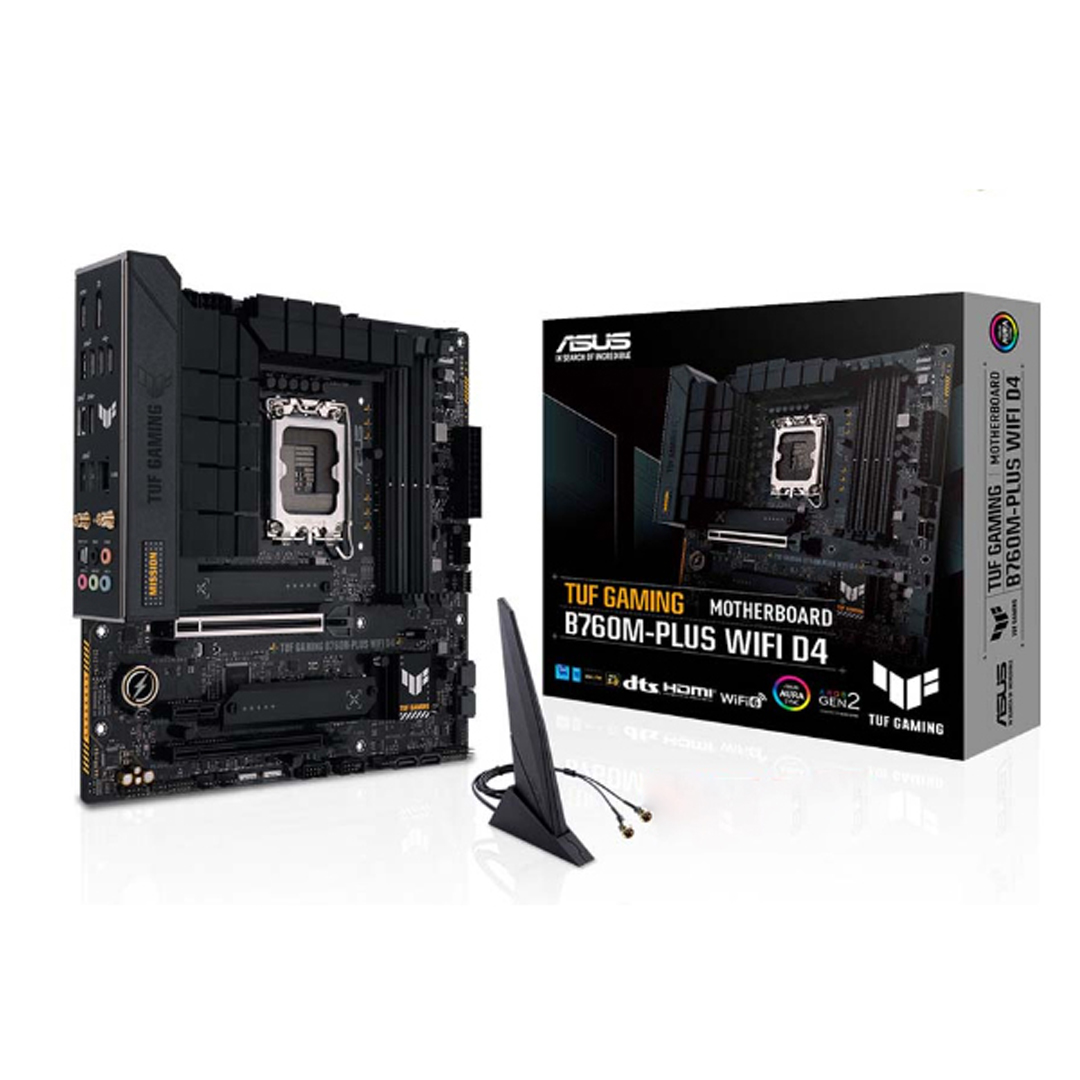

Mainboard ASUS TUF GAMING B760M-PLUS WIFI DDR4 LGA1700

SKU: DTB375

Stocking

INTRODUCE

The ASUS TUF GAMING B760M-PLUS WIFI D4 is an mATX motherboard with the Intel B760 chipset and Socket LGA1700 for 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors. It has 12+1 DrMOS power stages and a PCIe 5.0 x16 slot. You also get 4 DDR4 slots up to 5333 MHz (OC), two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, Intel Wi-Fi 6 and a rear USB 3.2 Gen 2x2 Type-C port.

3,590,000 Kip

Product Details

Brand: ASUS
Model: TUF GAMING B760M-PLUS WIFI D4

Features
12+1 DrMOS Power: Power stages rated up to 50A for steady CPU performance
PCIe 5.0 Ready: A PCIe 5.0 x16 slot for the latest graphics cards
DDR4 Memory: 4 DIMM slots up to 128 GB, DDR4 5333 (OC), with Intel XMP and OptiMem II support
Dual M.2 PCIe 4.0: 2 M.2 Key M slots that support PCIe 4.0 x4 mode
Intel Wi-Fi 6 & Bluetooth 5.2: 2x2 Wi-Fi 6 (Intel AX201) on the 2.4/5GHz bands
Realtek 2.5Gb Ethernet: Fast, stable wired networking
USB 3.2 Gen 2x2 Type-C: A rear 20Gbps USB Type-C port
Thunderbolt (USB4) Support: Works with a Thunderbolt (USB4) add-on card
Aura Sync: RGB lighting control

Specification
CPU Socket: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel B760
Memory: 4 × DIMM, max 128 GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; dual channel memory architecture; supports Intel XMP; OptiMem II
Graphics: 1 × DisplayPort (4K@60Hz), 1 × HDMI port (4K@60Hz)
Expansion Slots: 1 × PCIe 5.0 x16 slot (CPU); 1 × PCIe 4.0 x16 slot (supports x4 mode), 1 × PCIe 4.0 x1 slot (Intel B760 Chipset)
Storage: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode, CPU); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode, B760 Chipset); 4 × SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
LAN: 1 × Realtek 2.5Gb Ethernet
Wireless & Bluetooth: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band; Bluetooth v5.2
Rear I/O: 1 × USB 3.2 Gen 2x2 port (USB Type-C), 4 × USB 3.2 Gen 2 ports (Type-A), 1 × USB 3.2 Gen 1 port (Type-A), 2 × USB 2.0 ports (Type-A), 1 × DisplayPort, 1 × HDMI port, 1 × Wi-Fi Module, 1 × Realtek 2.5Gb Ethernet port, 5 × Audio jacks, 1 × Optical S/PDIF out port
Form Factor: mATX

Warranty: 12 months.
