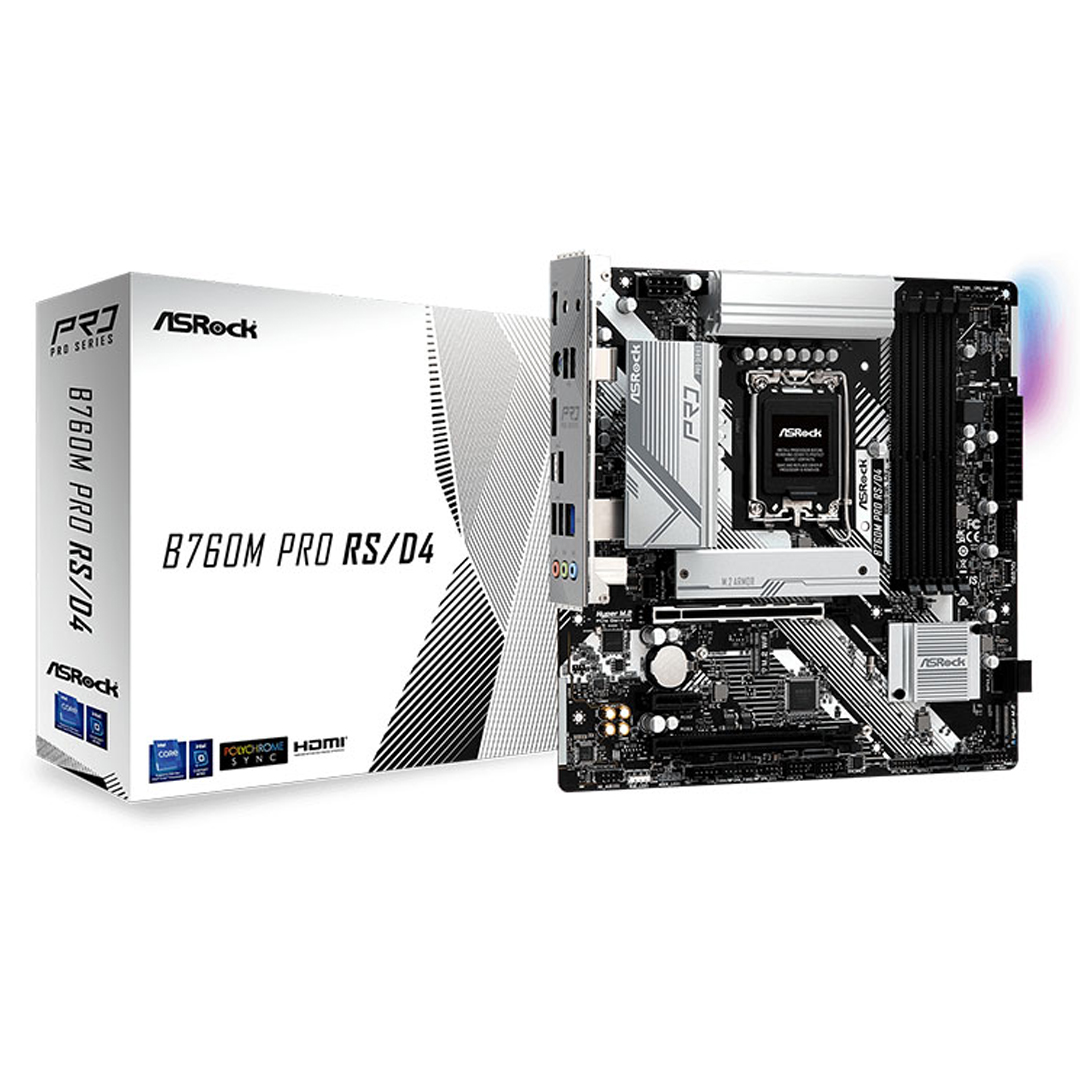

Mainboard ASROCK B760M PRO RS DDR4 LGA1700

SKU: DTB378

Stocking

INTRODUCE

The ASRock B760M Pro RS/D4 is a Micro-ATX motherboard with the Intel B760 chipset for 14th, 13th and 12th Gen Intel Core processors on Socket LGA1700. It has a 7+1+1 power phase design with Dr.MOS and 4 DDR4 slots up to 5333+ MHz (OC). You also get two PCIe 4.0 x16 slots, two Hyper M.2 PCIe Gen4x4 slots, HDMI and DisplayPort outputs, Realtek ALC897 audio with Nahimic, and Dragon 2.5G LAN.

2,680,000 Kip

Product Details

Brand: ASRock
Model: B760M Pro RS/D4

Features
7+1+1 Power Phase Design: Dr.MOS for VCore+GT gives sturdy, smooth power to the CPU for better gaming performance
DDR4 Memory: 4 DDR4 DIMM slots in dual channel, up to 128 GB and 5333+ MHz (OC), with Intel XMP 2.0 support
PCIe 4.0 Ready: 2 PCIe 4.0 x16 slots and 1 PCIe 4.0 x1 slot
Dual Hyper M.2 Gen4: 2 M.2 PCIe Gen4x4 (64 Gb/s) slots, twice as fast as the previous 3rd generation
Dragon 2.5G LAN: Up to 2.5 times the bandwidth of standard gigabit Ethernet, with smart auto bandwidth control
Nahimic Audio: Realtek ALC897 7.1 CH HD Audio Codec
Polychrome SYNC RGB: Built-in RGB lighting, plus RGB headers and an addressable RGB header
Front USB Type-C Header: A front USB 3.2 Gen1 Type-C connector for the case front panel
M.2 Key E for WiFi: Lets you add a WiFi/BT module

Specification
CPU Support: 14th, 13th & 12th Gen Intel Core Processors (LGA1700); supports Intel Hybrid Technology, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT)
Power Phase: 7+1+1 Power Phase, Dr.MOS for VCore+GT
Chipset: Intel B760
Memory: Dual Channel DDR4 Memory Technology; 4 × DDR4 DIMM slots; supports DDR4 non-ECC, un-buffered memory up to 5333+ (OC); supports ECC UDIMM memory modules (operate in non-ECC mode); max capacity 128 GB; supports Intel Extreme Memory Profile (XMP) 2.0
Memory OC: 1DPC 1R up to 5333+ MHz (OC), 1DPC 2R up to 4400+ MHz (OC), 2DPC 1R up to 4266+ MHz (OC), 3200 MHz natively
Graphics: Intel Xe Graphics Architecture (Gen 12); 1 × HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max resolution up to 4K 60Hz; 1 × DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
Expansion Slots: CPU: 1 × PCIe 4.0 x16 slot (PCIE1), supports x16 mode; Chipset: 1 × PCIe 4.0 x16 slot (PCIE3), supports x4 mode; 1 × PCIe 4.0 x1 slot (PCIE2); 1 × M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2; supports AMD CrossFire
Storage: CPU: 1 × Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: 1 × Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; 4 × SATA3 6.0 Gb/s connectors; supports Intel Volume Management Device (VMD); supports NVMe SSD as boot disks
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB: 2 × USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 × USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 × USB 2.0 (2 Rear, 4 Front); all USB ports support ESD Protection
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG; supports Dragon 2.5G LAN Software
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Rear Panel I/O: Antenna Mounting Points, 1 × PS/2 Mouse/Keyboard Port, 1 × HDMI Port, 1 × DisplayPort 1.4, 1 × USB 3.2 Gen1 Type-C Port, 3 × USB 3.2 Gen1 Type-A Ports, 2 × USB 2.0 Ports, 1 × RJ-45 LAN Port, HD Audio Jacks (Line in / Front Speaker / Microphone)
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor: Micro ATX

Warranty: 12 months.
