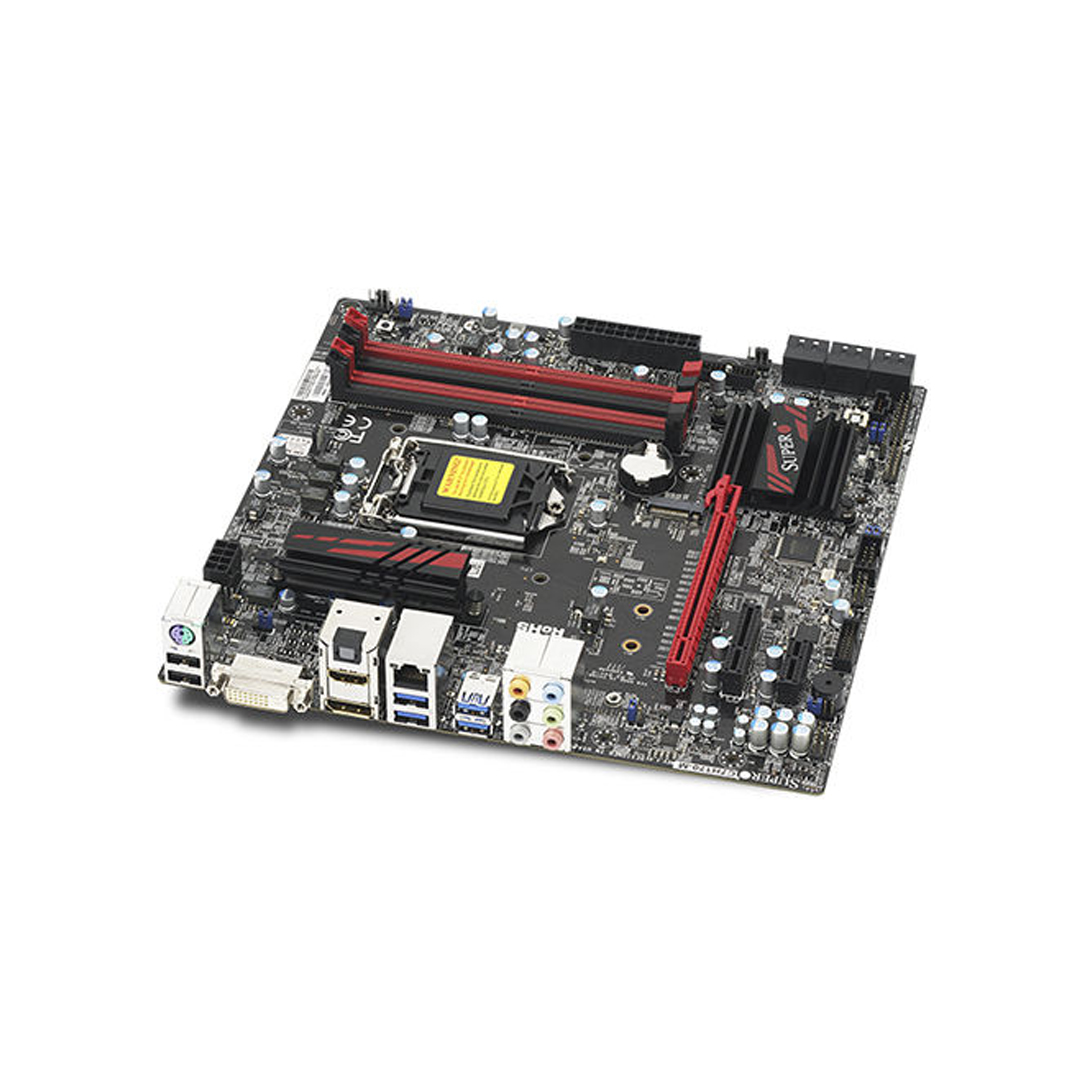

Mainboard SUPERMICRO C7H170-M DDR4 LGA1151 (6th 7th Generation)

SKU: DTB353

Stocking

INTRODUCE

The SUPERMICRO C7H170-M is a Micro-ATX motherboard with the Intel H170 Express chipset. It works with 6th and 7th Gen Intel Core i7/i5/i3 processors on Socket H4 (LGA 1151), up to 115W TDP. It has 4 DDR4 slots (up to 64 GB), 6 SATA3 ports with RAID 0/1/5/10, an M.2 PCIe x4 slot, DVI-D/DisplayPort/HDMI outputs, Intel i219V Gigabit LAN and Realtek ALC1150 7.1 HD audio. It's a stable board built with Supermicro's quality.

1,185,000 Kip

Product Details

Brand: SUPERMICRO
Model: C7H170-M

Features
Intel H170 Express Platform: Works with 6th and 7th Gen Intel Core i7/i5/i3 processors, up to 115W TDP
DDR4 Memory: 4 DIMM slots with up to 64 GB of unbuffered non-ECC DDR4
M.2 PCIe x4 Storage: 1 M.2 PCIe x4 slot that takes 2260/2280/22110 SSDs
6 SATA3 with RAID: 6 SATA3 6Gbps ports with RAID 0, 1, 5 and 10
Triple Display Output: DVI-D, DisplayPort 1.2 and HDMI 1.4
Intel Gigabit LAN: Intel i219V Ethernet PHY gives a stable wired connection
ALC1150 HD Audio: 7.1-channel high-definition audio
Intel Smart Response Technology: Uses an SSD as a cache to speed up the system
Reliability Features: Power-on recovery after AC power loss, CPU thermal trip protection and Wake-on-LAN

Specification
CPU Socket: Socket H4 (LGA 1151)
Supported CPU: Intel 6th Generation Core i3 / i5 / i7 series, Intel 7th Generation Core i3 / i5 / i7 series; CPU TDP support up to 115W
Chipset: Intel H170 Express
Memory Capacity: 64 GB Unbuffered non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type: 2400 / 2133 / 1866 Non-ECC DDR4 UDIMM
DIMM Sizes: 2 GB, 4 GB, 8 GB, 16 GB
Memory Voltage: 1.2 V
Expansion Slots: 1 × PCI-E 3.0 x16, 1 × PCI-E 3.0 x4, 1 × PCI-E 3.0 x1
SATA: Intel H170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
M.2: 1 × PCI-E M.2 (PCI-E x4, 2260/2280/22110), no RAID support
Video Output: 1 × DVI-D, 1 × DisplayPort (up to DP 1.2), 1 × HDMI (up to HDMI 1.4)
LAN: Single LAN with Intel single Ethernet PHY i219V; 1 × RJ45 Gigabit Ethernet LAN port
Audio: Realtek ALC1150 HD Audio, 7.1 channels
USB: 4 × USB 2.0 ports (2 rear + 2 headers), 6 × USB 3.0 ports (4 rear + 2 headers) Type A
Internal Connectors: 1 × COM header, 1 × TPM header
Power Connectors: ATX power connector, 4-pin 12V DC power connector, 8-pin 12V DC power connector
Other Features: Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
PC Health Monitoring: Fan, LED, Temperature, Voltage
BIOS: 16 Mbit
Form Factor: Micro-ATX, 9.6" × 9.6" (24.38 cm × 24.38 cm)
Part Number: MBD-C7H170-M-O

Warranty: 12 months.
