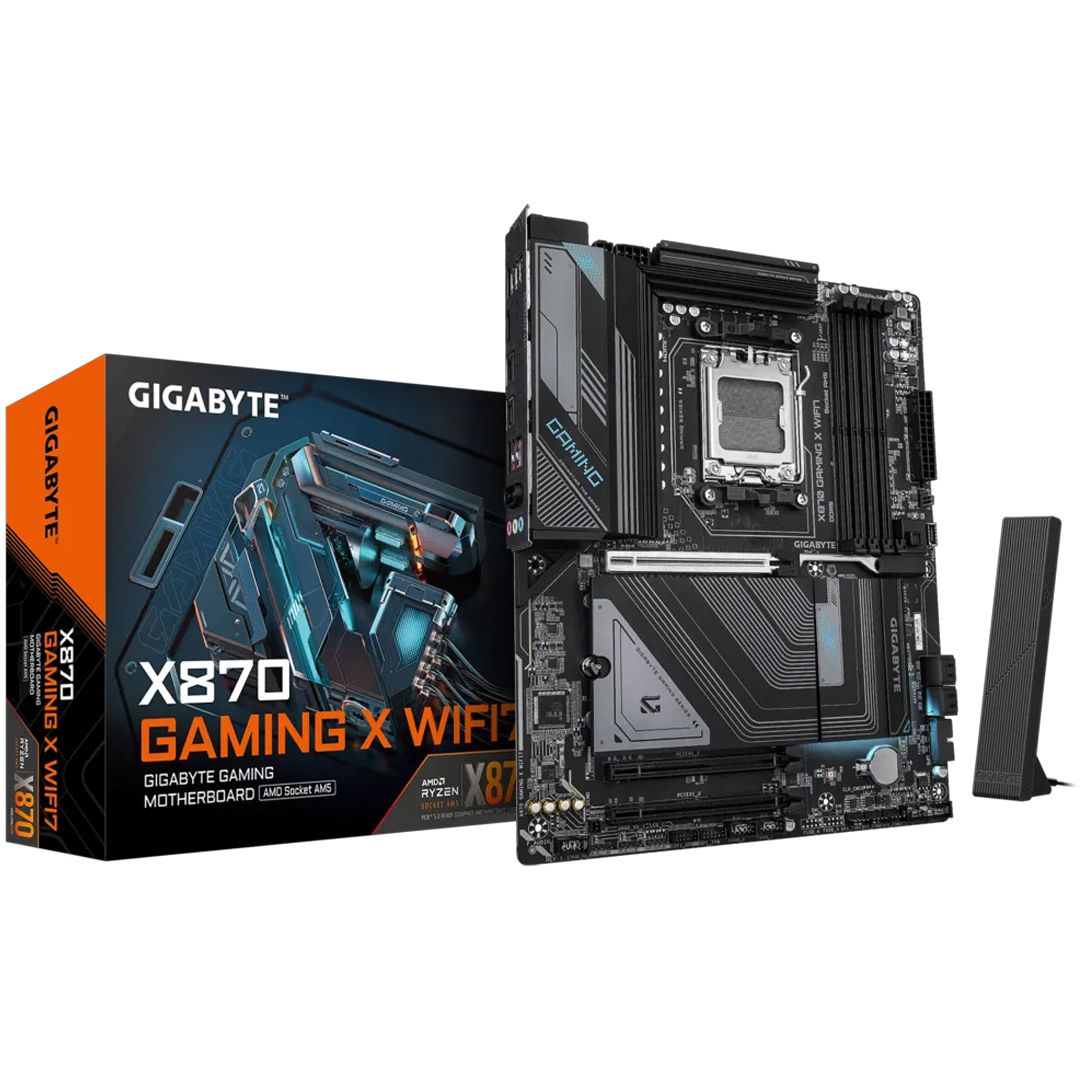

Mainboard GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5

SKU: DTB508

Stocking

INTRODUCE

The GIGABYTE X870 GAMING X WIFI7 is an ATX motherboard for AMD Socket AM5 that works with Ryzen 9000, 8000 and 7000 Series processors. It has a digital twin 16+2+2 phase VRM, dual-channel DDR5 with AMD EXPO, a PCIe 5.0 x16 graphics slot and a PCIe 5.0 M.2 slot. It also has dual USB4 Type-C with DisplayPort output, Wi-Fi 7 and 2.5GbE LAN.

6,280,000 Kip

Product Details

Brand: GIGABYTE
Model: X870 GAMING X WIFI7 (Rev. 1.x)

Features
AMD Socket AM5: Works with AMD Ryzen 9000, 8000 and 7000 Series processors
Digital Twin 16+2+2 Phase VRM: Delivers stable power to high-performance CPUs
Dual Channel DDR5: 4 DIMM slots with AMD EXPO and XMP memory support, up to 256 GB
One-Click DDR5 Boost: Raises DDR5 memory speed with a single click
PCIe 5.0 Ready: A PCIe 5.0 x16 graphics slot (PCIe UD Slot) and a PCIe 5.0 x4 M.2 slot
Ultra-Fast Storage: 3 M.2 slots, including 1 PCIe 5.0 x4, plus 4 SATA 6Gb/s ports
Dual USB4 Type-C: Two USB4 ports at up to 40 Gb/s, with DisplayPort Alt Mode
Fast Networking: 2.5GbE LAN and Wi-Fi 7 with an ultra-high-gain antenna
DIY-Friendly Design: EZ-Latch Plus quick-release PCIe and screwless M.2 slots, EZ-Latch Click screwless M.2 heatsinks, and WIFI EZ-Plug
Efficient Thermal Design: VRM Thermal Armor Advanced and M.2 Thermal Guard Ext.
Friendly UI: Multi-Theme, AIO Fan Control and Q-Flash Auto Scan in the BIOS and software

Specification
CPU Socket: AMD Socket AM5
Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Chipset: AMD X870
Memory: 4 × DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity), dual channel
Memory Support: DDR5 up to 8000 MT/s (OC), DDR5 5200/4800/4400 MT/s (native); non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16; AMD EXPO and XMP
Onboard Graphics: 1 × HDMI port, max resolution 4096 × 2160 @ 60 Hz; 2 × USB4 Type-C ports with DisplayPort output, max resolution 3840 × 2160 @ 240 Hz
Expansion Slots: 1 × PCIe 5.0 x16 slot (PCIEX16, integrated in the CPU, Ryzen 9000/7000 support PCIe 5.0 x16 mode, Ryzen 8000 Phoenix 1 supports PCIe 4.0 x8 mode); 2 × PCIe 3.0 x1 slots
Storage Interface: 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0); 4 × SATA 6Gb/s ports
RAID: Supported
USB: 2 × USB4 Type-C (up to 40 Gb/s); 1 × USB 3.2 Gen 2; 3 × USB 3.2 Gen 1; 4 × USB 2.0/1.1; front USB Type-C header
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication: Wi-Fi 7 (MediaTek MT7925 on PCB rev. 1.0 / Realtek RTL8922AE on PCB rev. 1.1), 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, 11be 160MHz, Bluetooth 5.4
Antenna: 2 × antenna connectors (2T2R), WIFI EZ-Plug
Audio: Realtek audio codec, 7.1 channels
Rear Panel Audio: 3 × audio jacks
Back Panel Buttons: 1 × Q-Flash Plus button
Power Design: Digital twin 16+2+2 phases VRM
Thermal: VRM Thermal Armor Advanced, M.2 Thermal Guard Ext.
Form Factor: ATX, 30.5 cm × 24.4 cm

Warranty: 12 months.
